    Welcome To Baoding Kuoda Lifting Machinery Co.Ltd. English|中文

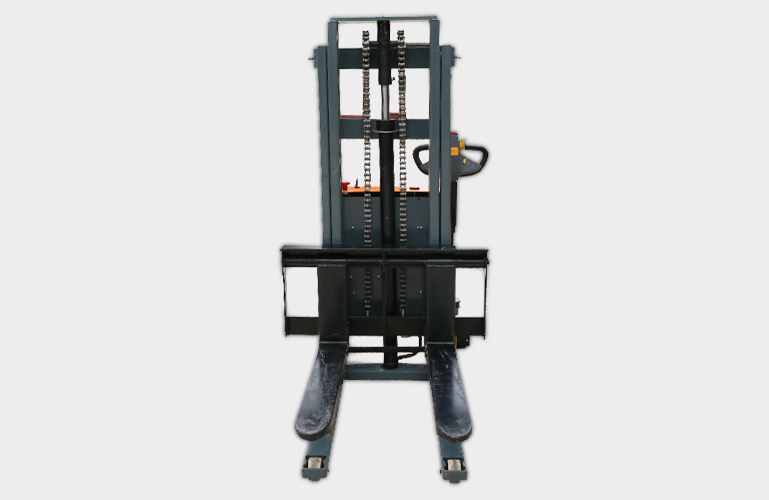

    semi-electric stacker

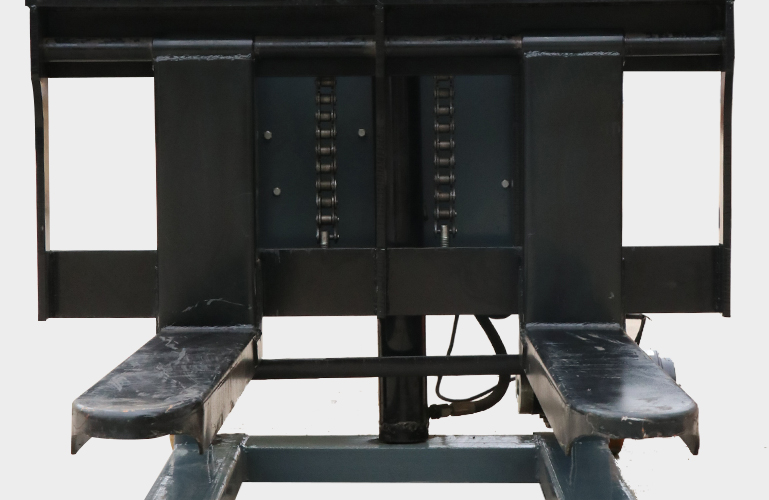

    Produced by special rolling process “ C” Shaped steel door frame strong and safe worry - free and durable;
    Can be customized according to customer demand a variety of lifting height.
    Vehicle structure is rigorous fine workmanship beautiful appearance;
    Choose to use special hydraulic pump power is strong equipped with high-quality batteries lasting power;
    The surface is treated with baking paint and the plastic shell adopts injection molding.
    Electric lifting and walking is a dual-use semi-electric high-lift truck with the function of loading and unloading and short distance transportation of goods.
    Applicable to the loading and unloading of goods in workshops warehouses stations etc.
    It has the characteristics of stable lifting labor saving flexible rotation and convenient operation.
    It is an ideal tool to reduce labor intensity improve work efficiency and realize safe loading and unloading.
    Model CTD1.0/16 CTD1.0/20 CTD1.0/25 CTD1.0/33 CTD1.5/16 CTD1.5/20 CTD1.5/25 CTD1.5/33 CTD2.0/16
    Capacity(kg) 1000 1000 1000 1000 1500 1500 1500 1500 2000
    Lifting height H2(mm) 1600 2000 2500 3000/3300 1600 2000 2500 3000/3300 1600
    Mast type Single Double Double Double Single Double Double Double Single
    Fork length L 1(mm) 1000 1000 1000 1000 1000 1000 1000 1000 1000
    Min height forks H1(mm) 90 90 90 90 90 90 90 90 90
    Load center(mm) 500 500 500 500 500 500 500 500 500
    Charging voitage Ac220V Ac220V Ac220V Ac220V Ac220V Ac220V Ac220V Ac220V Ac220V
    Motor power 1.6KW 1.6KW 1.6KW 1.6KW 1.6KW 1.6KW 1.6KW 1.6KW 1.6KW
    Outer width of legs(mm) 635 635 635 635 635 635 635 635 635
    Inner width of legs(mm) 395 395 395 395 395 395 395 395 395
    Adjustable width of forks(mm) 360-690 360-690 360-690 360-690 360-690 360-690 360-690 360-690 360-690
    Rear wheel size(mm) Φ80*93 Φ80*93 Φ80*93 Φ80*93 Φ80*93 Φ80*93 Φ80*93 Φ80*93 Φ80*93
    Front wheel size(mm) Φ80*65 Φ80*65 Φ80*65 Φ80*65 Φ80*65 Φ80*65 Φ80*65 Φ80*65 Φ80*65
    Weight(kg) 280 305 325 350/410 305 350 365 415/420 310
    Closed height H3(mm) 2080 1650 1900 2150/2300 2080 1650 1900 2150/2300 2080
    Extended height(mm) 2080 2650 3125 3625/3925 2080 2650 3125 3625/3925 2080
